Show/hide formula

The show/hide formula allows you to conditionally render elements based on specific conditions. This enables you to create dynamic interfaces that respond to user interactions, application state and other factors.

Example

See how the show/hide formula controls the visibility of the card based on the toggle button.

The show/hide formula controls whether an element is displayed or not:

It evaluates a Boolean expression
If the expression is truthy, the element is shown
If the expression is falsy, the element is hidden
The formula is applied by setting the show attribute on an element

For Devs

The truthy concept in Nordcraft is similar to JavaScript but follows a more streamlined approach:

Only false, null and undefined are treated as falsy
All all other values (including empty strings, zero and empty arrays) are considered truthy

Add a show/hide formula

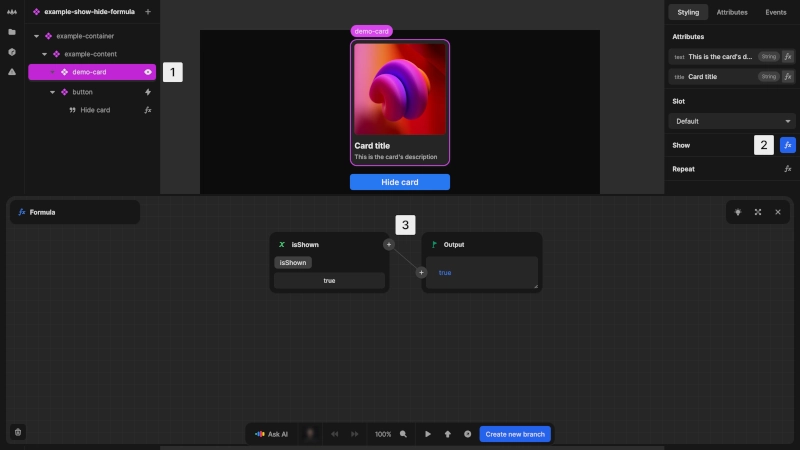

A show hide formula visible in the formula editor. The fx button next to show is highlighted blue on the right panelshowing the formula is active. The formula uses the isShown variable, which is a boolean, to determin whether to show or hide the selected element, which is a demo-card component.

Live

To conditionally show or hide an element:

1
Select the element you want to show and hide based on conditions
2
In the attributes panel, click the fx button next to Show
3
Enter a formula that evaluates to a Boolean value; the element will only be visible when the formula evaluates to true

How show/hide differs from CSS display

Using Nordcraft's show/hide formula is different from setting CSS display: none or visibility: hidden:

Show/hide formula:
- Completely removes and unmounts the element from the DOM when hidden
- Adds a new instance of the component or element to the DOM when shown and reinitializes state
- No APIs, events or workflows run on hidden elements
CSS display/visibility:
- The element or component remains in the DOM but is not visible
- APIs, events and workflows continue to run
- No unmounting or remounting occurs when toggling visibility

Performance considerations

Given elements are unmounted and remounted when the show/hide condition changes, be aware of these performance implications:

Re-initialization: When an element is added to the DOM when the show/hide formula evalutes to truthy, all initializations, API calls and onLoad events will run again
DOM updates: Hiding and showing elements forces the browser to remove and recreate DOM nodes, which can negatively affect page performance for complex components
State loss: Any internal state not stored in variables will reset when the element is hidden

For most uses, this behavior is ideal. However, if you need to toggle visibility frequently while maintaining state, consider CSS alternatives:

Use display: none to hide the element but preserve its state
Use visibility: hidden to hide the element while maintaining its layout space

Warning

Hiding and showing elements and components via CSS keep their markup in the DOM, so use this approach only when you need to preserve state during frequent visibility changes.
